Schreder Tow Hook
by
Wayne Paul

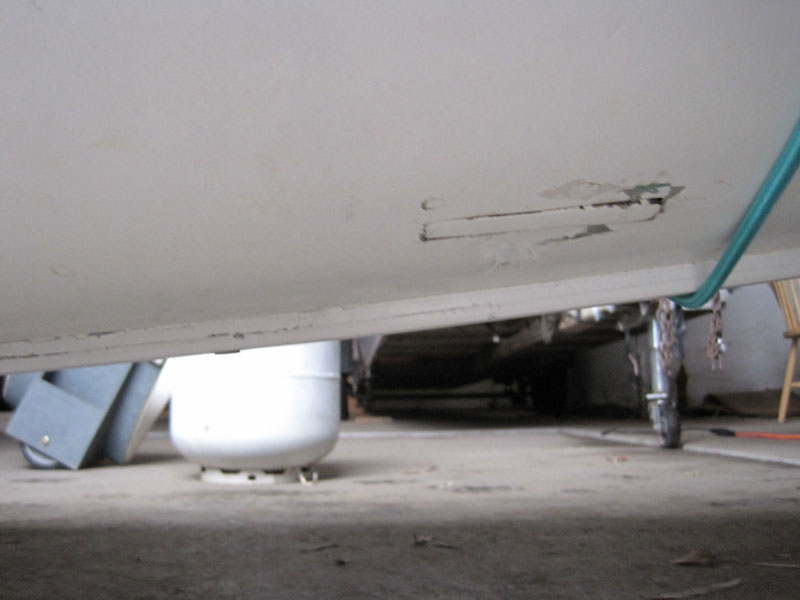

This is hook when it is retracted.

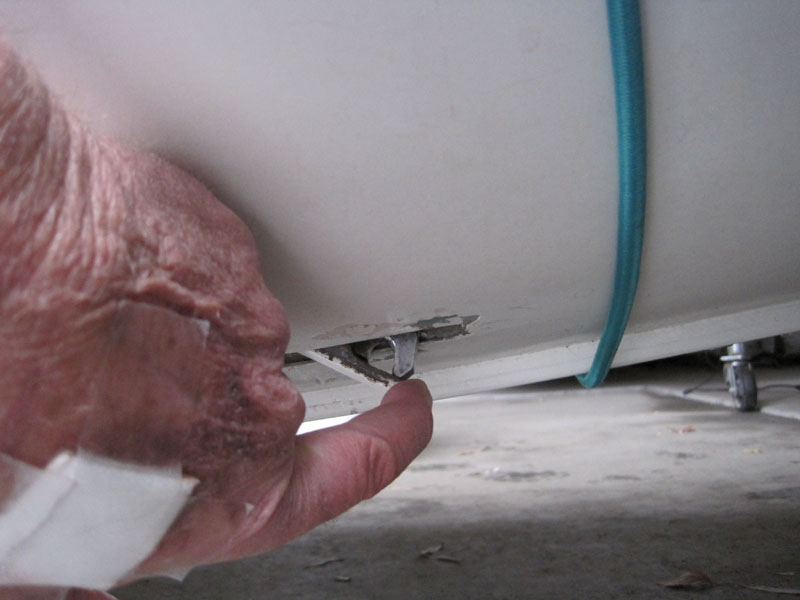

Pushing up on the back will open the front enough to get
a hold of the front. Then pull it down until the hook cocks.

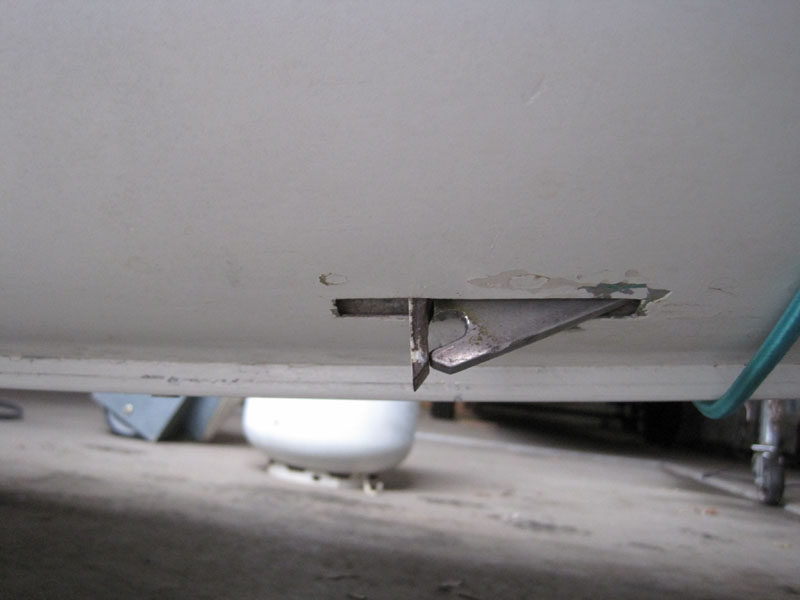

This is what the cocked hook looks like.

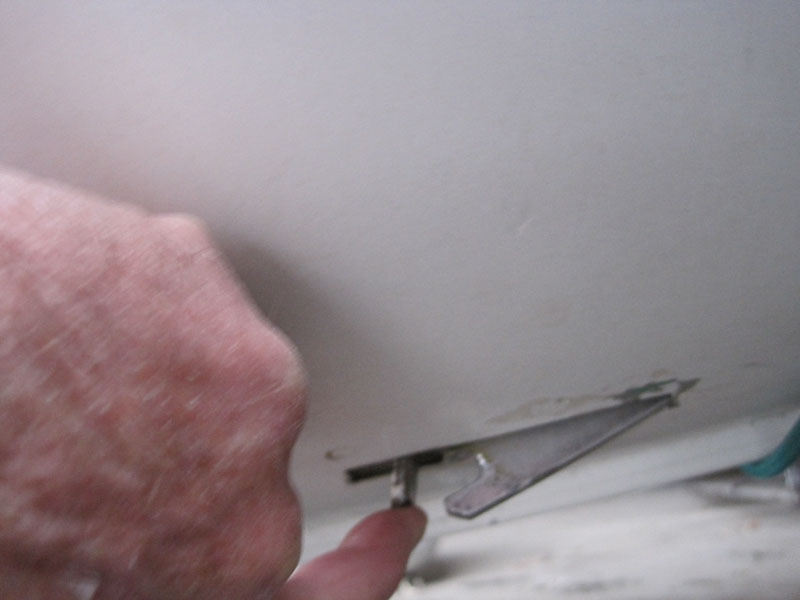

Pull back the capture bar enough to insert tow ring.

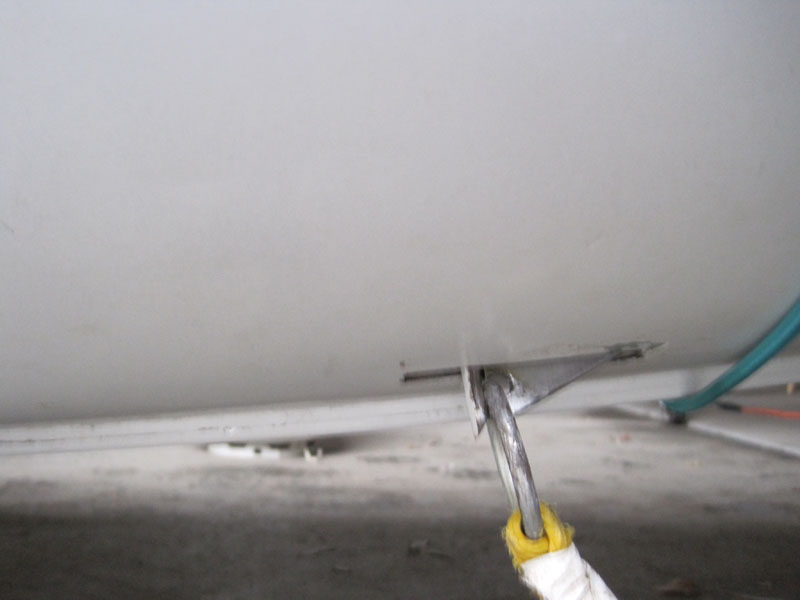

This is an attached Schweizer tow ring.
